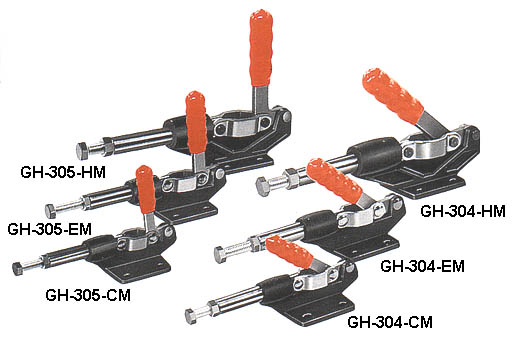

GH-304-CM and GH-305-CM,GH-304-EM 台湾嘉手goodhand快速夹推拉式
更新：2016/2/25 10:48:55 点击：50
- 产品品牌 台湾嘉手goodhand
- 产品型号 GH-304-CM and GH-305-CM,GH-304-EM
- 产品描述
...
产品介绍
行程：304(305)--CM=32mm, 304(305)--EM=42mm, 304(305)--HM=60mm  |
 |
|

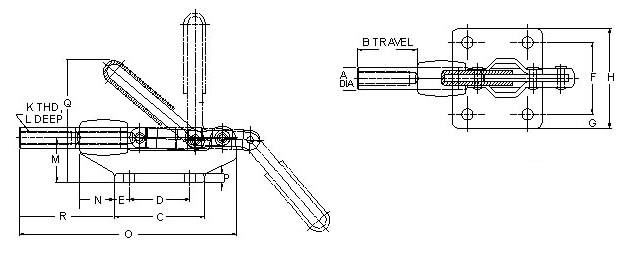

Model型号 |
Holding |
Handle手把移动角度 |
Weight自重 |
Supplied |
A |
B |
C |
D |
E |
F |
G |
H |
I |
K |
L |
M |
N |
O |
P |
Q |
R |
|
GH-304-CM |
227kg |
45o |
340g |
GH-SA-085012 |
12.7 |
30.2 |
52.4 |
35 |
8.7 |
41.1 |
8 |
57.2 |
6.7 |
M8 |
30.2 |
25.4 |
20.6 |
125.4 |
4.8 |
74.6 |
52.4 |
|
GH-305-CM |
227kg |
90o |
340g |
12.7 |
30.2 |
52.4 |
35 |
8.7 |
41.1 |
8 |
57.2 |
6.7 |
30.2 |
25.4 |
20.6 |
125.4 |
4.8 |
90.5 |
52.4 |
||
|
GH-304-EM |
386kg |
45o |
580g |
GH-SA-105015 |
16 |
41.4 |
58.8 |
41.4 |
8.7 |
41.1 |
8 |
57.2 |
8.3 |
M10 |
39.7 |
31.8 |
31.8 |
158.8 |
4.8 |
98.4 |
81 |
|
GH-305-EM |
386kg |
90o |
580g |
16 |
41.4 |
58.8 |
41.4 |
8.7 |
41.1 |
8 |
57.2 |
8.3 |
39.7 |
31.8 |
31.8 |
158.8 |
4.8 |
122.8 |
81 |
||
|
GH-304-HM |
680kg |
45o |
1480g |
GH-SA-125017 |
19.2 |
60.4 |
73.2 |
50.8 |
11.1 |
50.8 |
10.3 |
71.4 |
8.3 |
M12 |
49.2 |
50.8 |
50.8 |
238.2 |
6.4 |
133.4 |
120.8 |
|
GH-305-HM |
680kg |
90o |
1480g |
19.2 |
60.4 |
73.2 |
50.8 |
11.1 |
50.8 |
10.3 |
71.4 |
8.3 |
49.2 |
50.8 |
50.8 |
238.8 |
6.4 |
171.6 |
120.8 |
||
|
GH-304-ESS |
STAINLESS STEEL 不锈钢 |
||||||||||||||||||||
